About this product
Model: AZsolarfilter-4
Part Number: AZ-1003
Please select dimensions that match the outside diameter of your telescope including dew shield (if fitted).

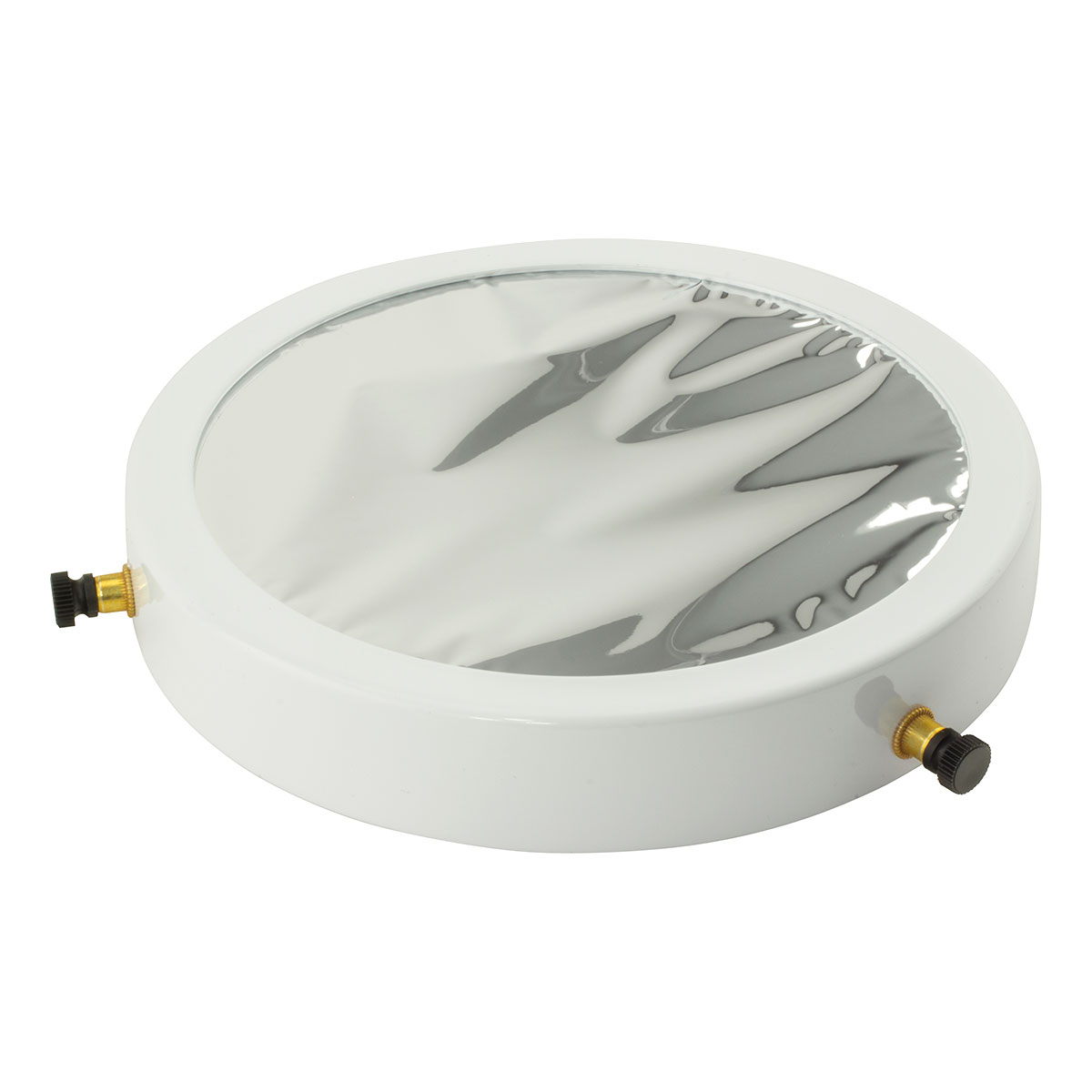

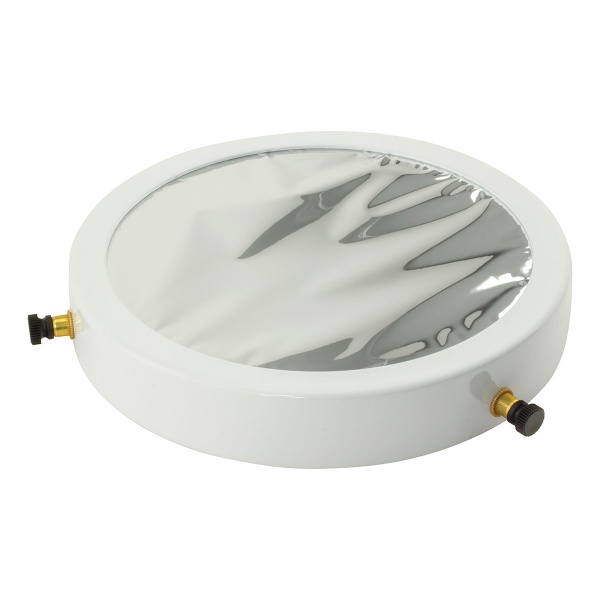

Premium quality full-aperture solar filters
- Made using Baader AstroSolar™ Material for solar observation and photography.
- Filter cell constructed from lightweight 18Ga aluminium with white powder-coat surface.
- Heavy duty threaded inserts and nylon thumbscrews.
- All are full-aperture filters (except the 395-405mm model which provides an off-axis partial aperture).
Baader AstroSolar™ filmWith AstroSolar™ the Sun appears in its real colour - neutral white. Other films and most glass filters produce a cool/blue or warm/orange colour Solar image, thereby cutting part of the spectrum. Especially with an orange sun, it is very hard to see faculae regions which are visible predominantly in the blue wing of the spectrum.
Due to its neutral colour balance, AstroSolar enables the use of various colour (or interference) filters which allows the observer to concentrate on certain spectral passbands for investigations of different layers within the solar 'atmosphere'.
Eye safety
AstroSolar™ is essentially free from pinholes, since it is coated on both sides, the chance of two pinholes overlapping each other is extremely faint. Pinholes do appear, but to 1 out of 10000 only in optical density 2.5! Baader AstroSolar™ safety film has been approved for eye safety by the National Bureau of Standards in Germany, the PTB. Unlike any other Solar Filter on the market, AstroSolar™ is CE-tested according to EG-Norm 89/686 and EN 169/92 (notified body 0196). All processes connected to this product have been thoroughly tested. Coatings are inspected constantly for consistency to ensure your eye safety!
NOTE: Not suitable for use with open-tube telescopes, like 'truss' Dobsonians.
IMPORTANT Never view the Sun without a suitable Solar Filter! Check the solar filter fits securely and covers the full telescope aperture before every use. Solar observing is dangerous and can be hazardous to eyesight. Safety is everyone’s responsibility, please read the safety notes supplied with the product carefully.
Customer reviews
| Average Rating (11 Reviews): | |
10 March 2023 | Paul
Tried this for the first time today totally amazed
Got some great images .
07 August 2022 | Steven
Purchased the 104mm-114mm to fit a 103mm dew shield, found that the actual adjustments using the 3 grub screws gave a measurement of 99mm-119mm so fitted easily. Adjuster screws are nylon so a good firm grip on the dew shield without leaving any marks. Image of the sun was white, giving a great contrast to the dark sun spots. Nice addition giving me the option of solar viewing during the long, light summer days.
23 February 2022 | Keith
Still waiting for the clouds to clear since the filter arrived. The plus point is that FLO provided excellent service as usual. The product looks good, and the price was good too.
28 September 2021 | Charlie
Not used it yet, only just received it. This was sent out yesterday from FLO. I'm in Northern Ireland and it was received this morning. Such fast delivery service. Team at FLO are always so helpful to guide you when needed. Brilliant team and astonished at the delivery speed.
Thank you team.
Fits skywatcher 130 and 127 - perfect 24 March 2021 | Ronald
Very fast delivery (next day)
Fits both my 130 newt and 127 mak
Very well packaged
Going to be great for sunspots and iss transits
Thank you
Astrozap Baader Solar Filter 10 December 2020 | Mike
Excellent service, very fast delivery, I have purchased a couple of products from FLO, always the same results, great communication, service and very fast delivery.
Well done FLO keep up the great service
Thank you.
Mike
08 April 2019 | Mohamad
I ordered the 225-235mm and its fit perfectly on my 8 newt telescope
31 March 2018 | Rodney
Not exactly what i was looking for but never the less they do the job for what they are intended for. Being half the price of my Previous filter from Orion i guess you get what you pay for.
Very good and secure sun filter. 21 December 2013 | John
I got the 225mm-235mm filter which fits perfectly on my Celestron C8N. The filter feels secure on the scope which gives a much needed feeling of confidence that the filter won't fall off even in windy conditions.
Only had a quick 5 minute look at a low winter sun today before it clouded over. Great views of the sunspots and can see some graining on the surface too.
The only minor problem is finding the sun in the first place. Can't use the finderscope (no filter) and the widest angle lens I have is 20mm. Going to get a wider angle lens soon anyway so that should make things easier.
Overall a great value, well made filter that gives some fantastic views of the sun, opening up a whole new subject for the telescope.
14 May 2012 | Richard
I have the Astro Zap on my Revelation 80mm refractor and it works extremely well indeed and on the first attempt I got more than usable images using eyepiece projection with my Baader 8-24 zoom with my Canon 50D DSLR.
Have also bought a sheet of the Baader solar filter material to make a cell for my finderscope, as trying to find the sun through the telescope can be hit or miss affair.
Excellent product
Read all 11 customer reviews...
