Pegasus Astro Power Supply Unit - 2.1mm
  Zoom

Pegasus Astro Power Supply Unit - 2.1mm

£59.00
  (2 Reviews)
✓ 2 year warranty
Choose:


:

5x in stock shipped 1-2 working days
Share

About this product

Model:  peg_psu_21_uk
Part Number:  PEG-PSU-21-UK

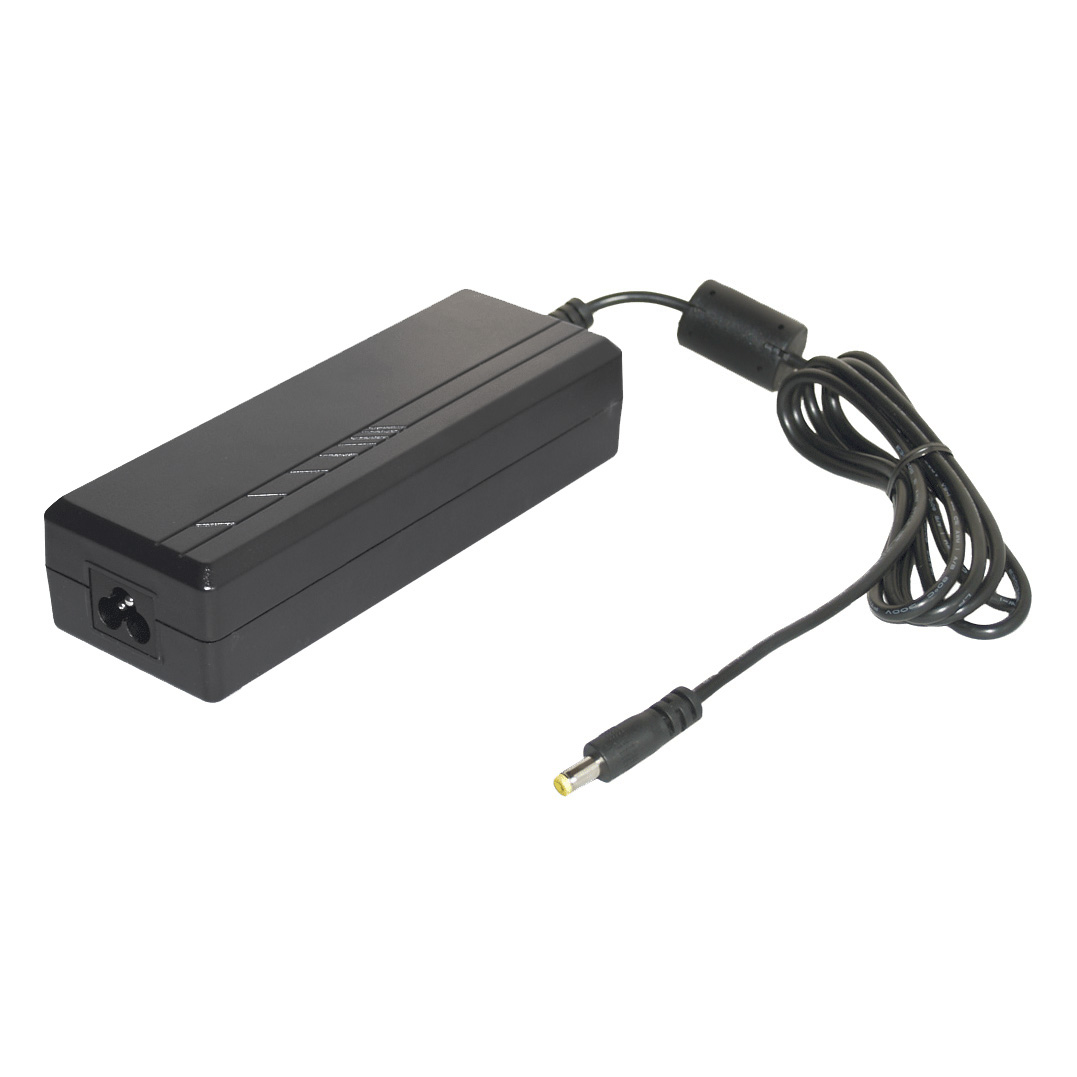

Pegasus Astro Power Supply Unit - 2.1mm

The perfect match for Pegasus Astro Products. It can provide 12V and up to 10 Amps. (120W of total power).

Low ripple and low noise.

You can select UK, US, EU or Australian power cords (1.8m).

This version has a 2.1mm male connector suitable for Pocket Powerbox units.

Protections

  • Over current/ Short protection: The power supply will self-protect any output to ground & auto recovery when abnormal circuit faults remove. An output short circuit is defined as any output impedance less than 0.1 ohms.
  • Over Voltage: The power supply will be auto-recovered when faults remove
  • Input protection: F1:6.3A 250V Fuse The power supply shall be protected against power line surges and any abnormal condition
  • No Load Protection: To prevent damage to the power supply and system.
  • Protection class I (ITU-T K.21 Surge 6KV on request)

Certifications

Customer reviews

Average Rating (2 Reviews):
Write a Review and share your opinions!
Rating (max 5):
Stable and durable!
01 August 2024  |

I’ve used this as the power supply to my ASIAIR for about 3 years now and it’s been great, no issues at all. Somehow my guiding actually improved slightly when I started using. I guess it goes to show that my previous power supply wasn’t supplying a stable current at all. Guiding went from an average 0.8 to 0.6 consistently and has sat there for a few years now. I haven’t got the hardware to test the sine wave of the output current but it seems to perform well. Highly recommend!

Rating (max 5):
Pegasus Power Supply Unit (PSU)
26 October 2022  |

A bit strange that a quality 12V10A PSU was so difficult to find. At least with good enough specs to power my brand new ZWO AM5 Mount. I have not been able to use this for long, thus cannot say anything about its durability. However, it arrived with all the correct plugs (EU cord and the 5.5x2.1mm jack) as ordered and was a nice and easy plug and play device. I was able to test it and also my new AM5. Recommended.
