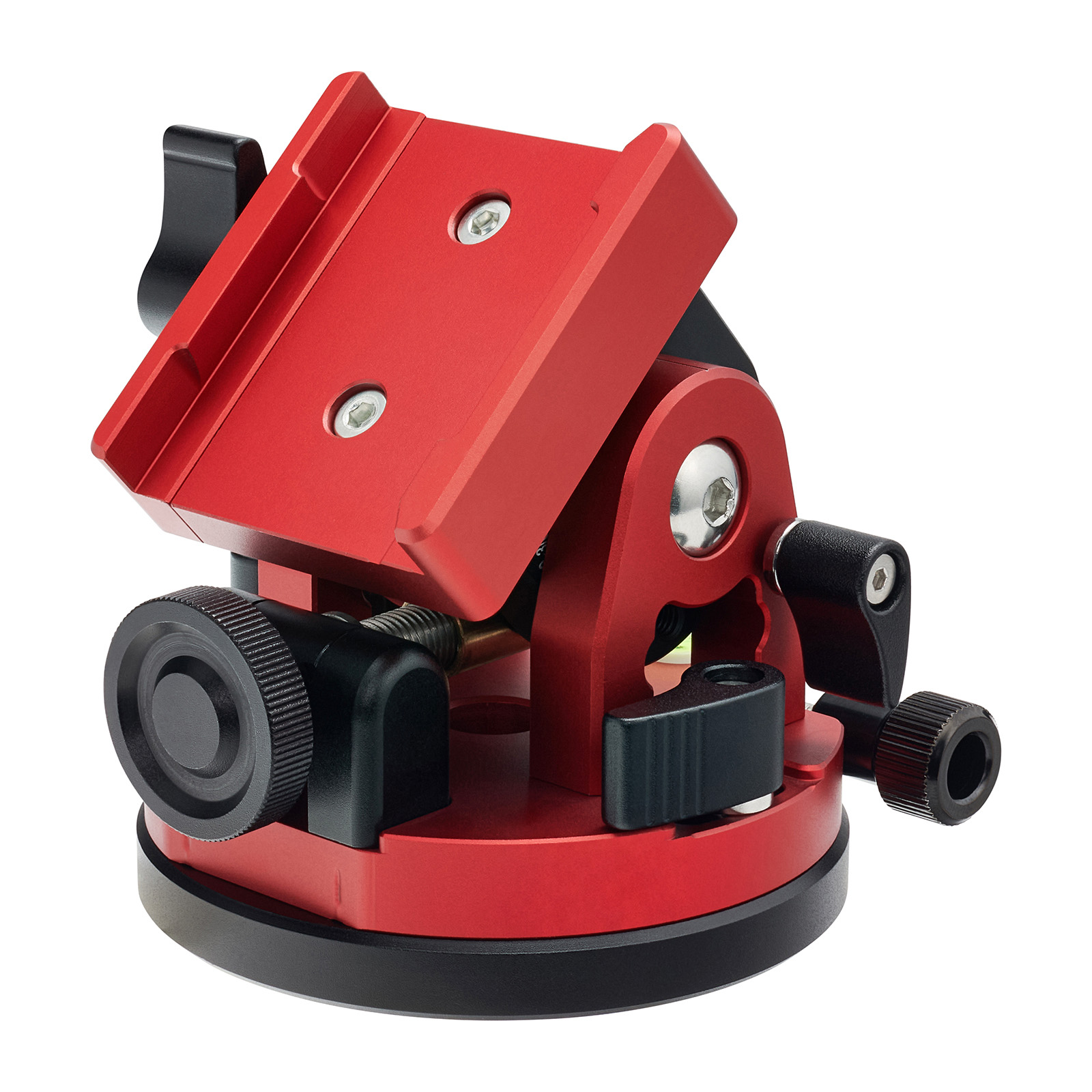

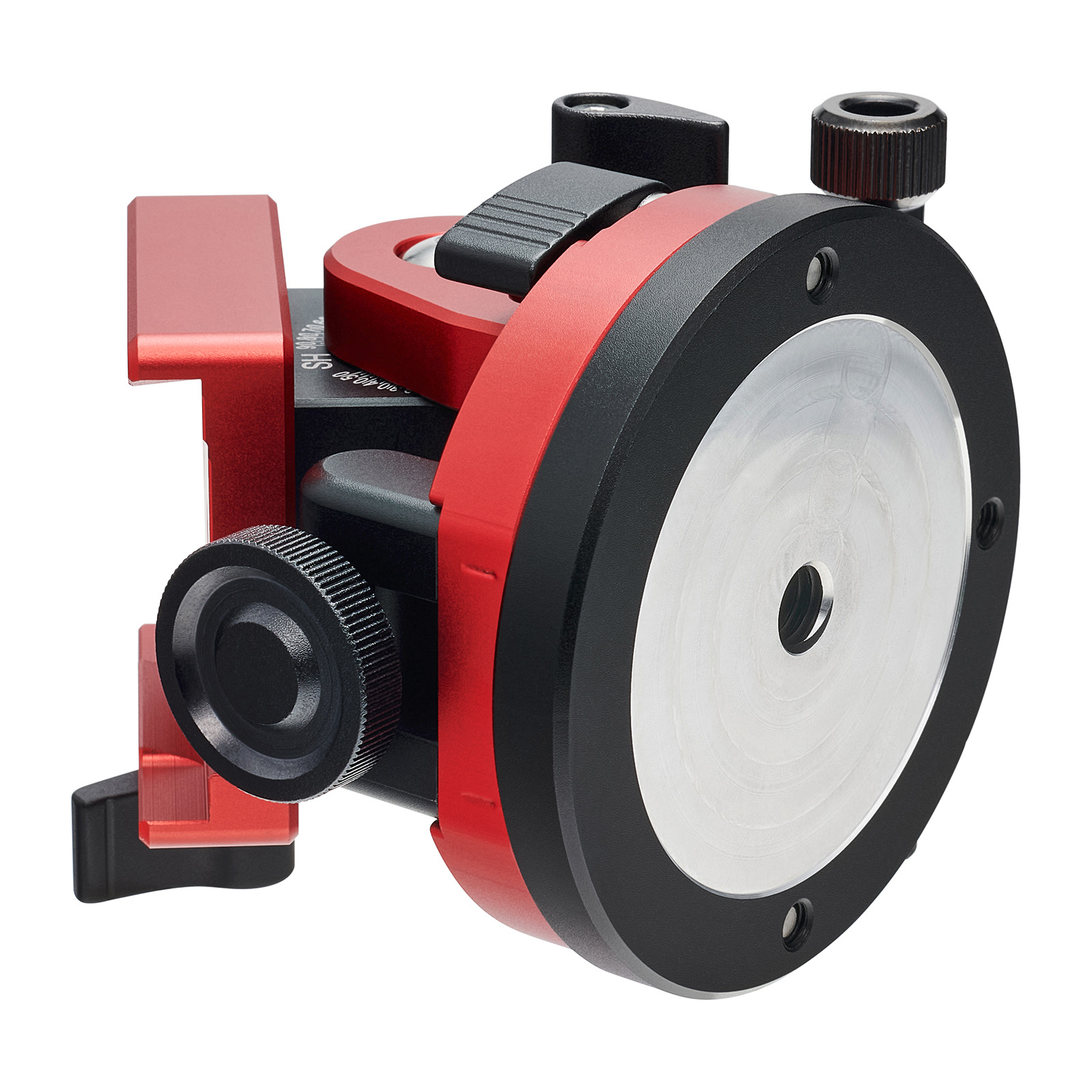

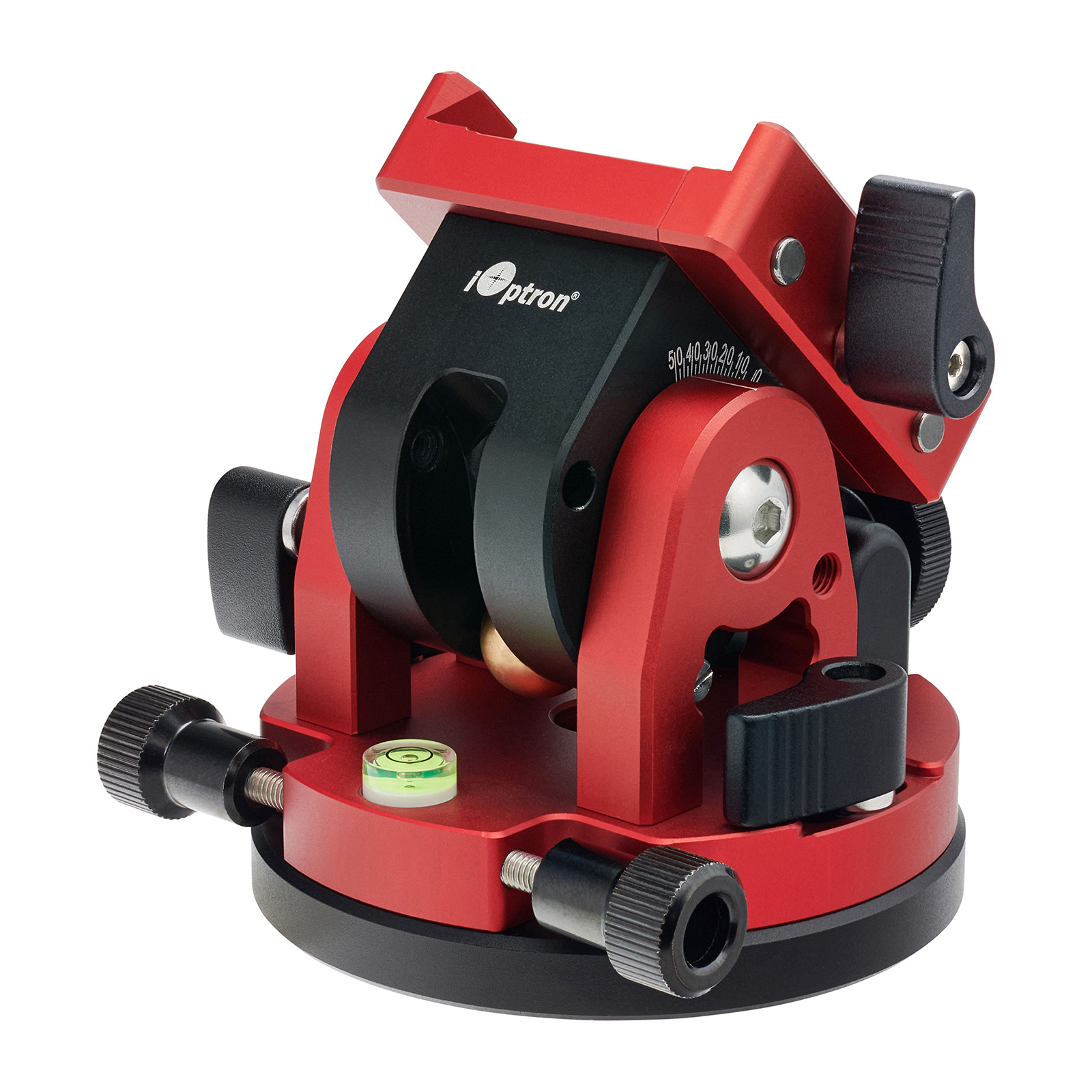

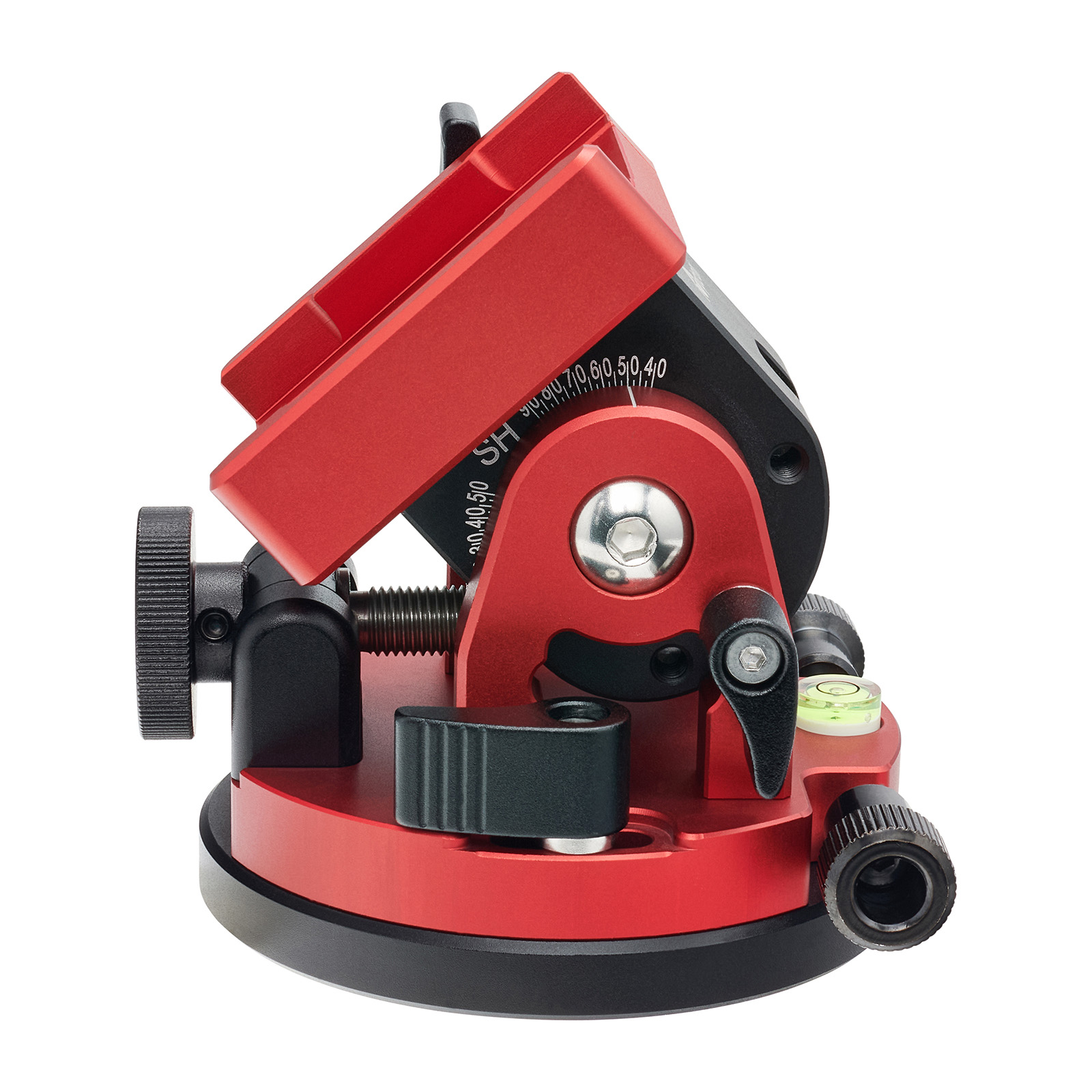

iOptron Precision AZ/EQ Base

Precision adjustable equatorial base for SkyHunter GOTO, SkyGuider Pro and SkyTracker Pro mounts.

The base has a built-in bubble level and accepts a Vixen-type dovetail bar.

The altitude adjustment range is from 0º ~ 90º

FEATURES

  • CNC-machined, all-metal construction
  • Accepts Vixen-type dovetail bar (not included)
  • 0º ~ 90º in latitude adjustment
  • ±5° in azimuth adjustment
  • Φ80 mm mounting base
  • Attaches to a camera tripod with 3/8” or 1/4” threads (optional 3/8"-1/4" thread converter needed)



Specifications

Dovetail saddle Vixen-type
Mounting base diameter Φ80 mm
Mounting base socket 3/8” threaded socket
Latitude adjustment range 0º ~ 90º
Azimuth adjustment range ±5º
Level indicator Level bubble
Warranty 2 Years
