About this product
Model: cel_cgx_1100_edgehd_12057
Part Number: 12057-CGL

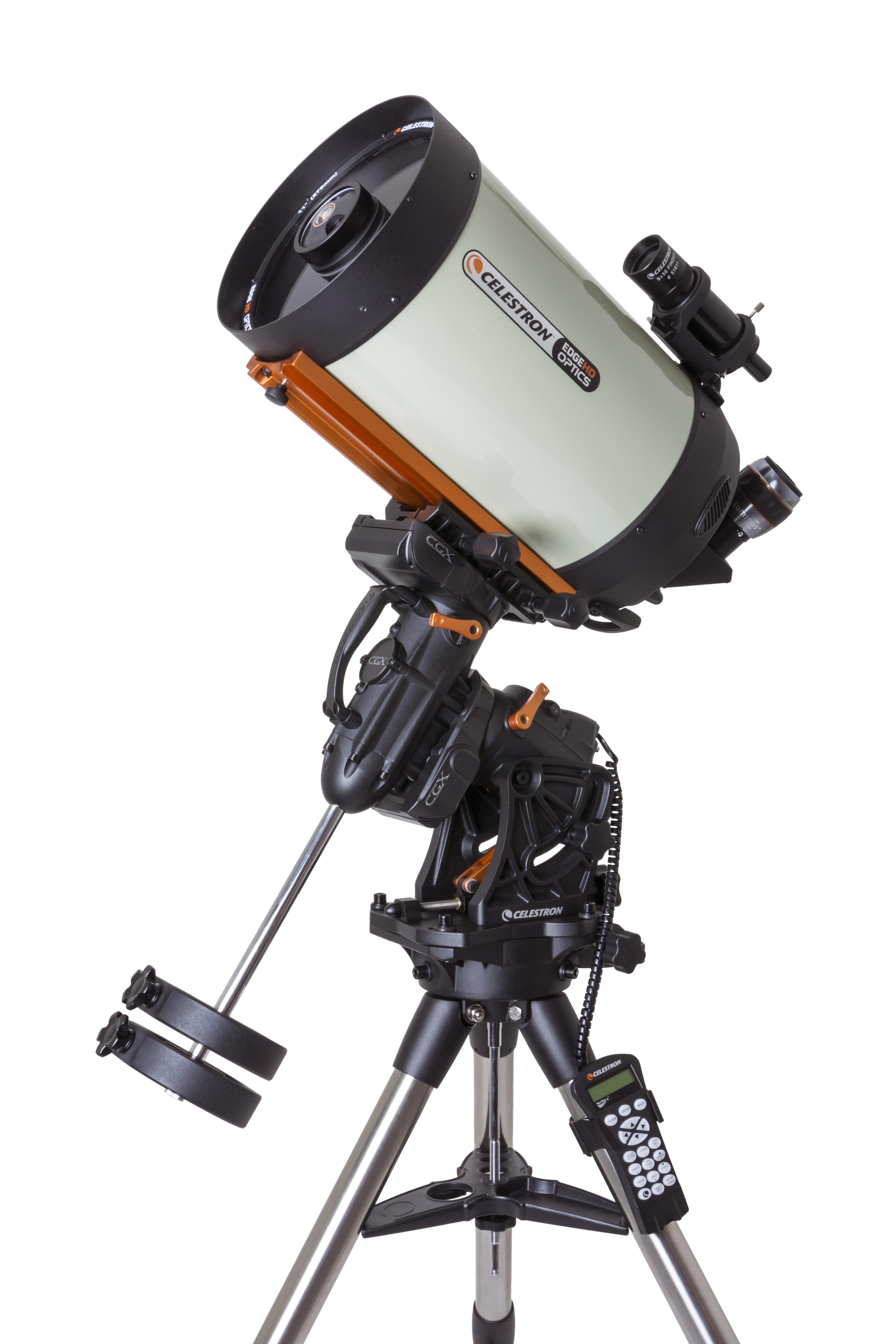

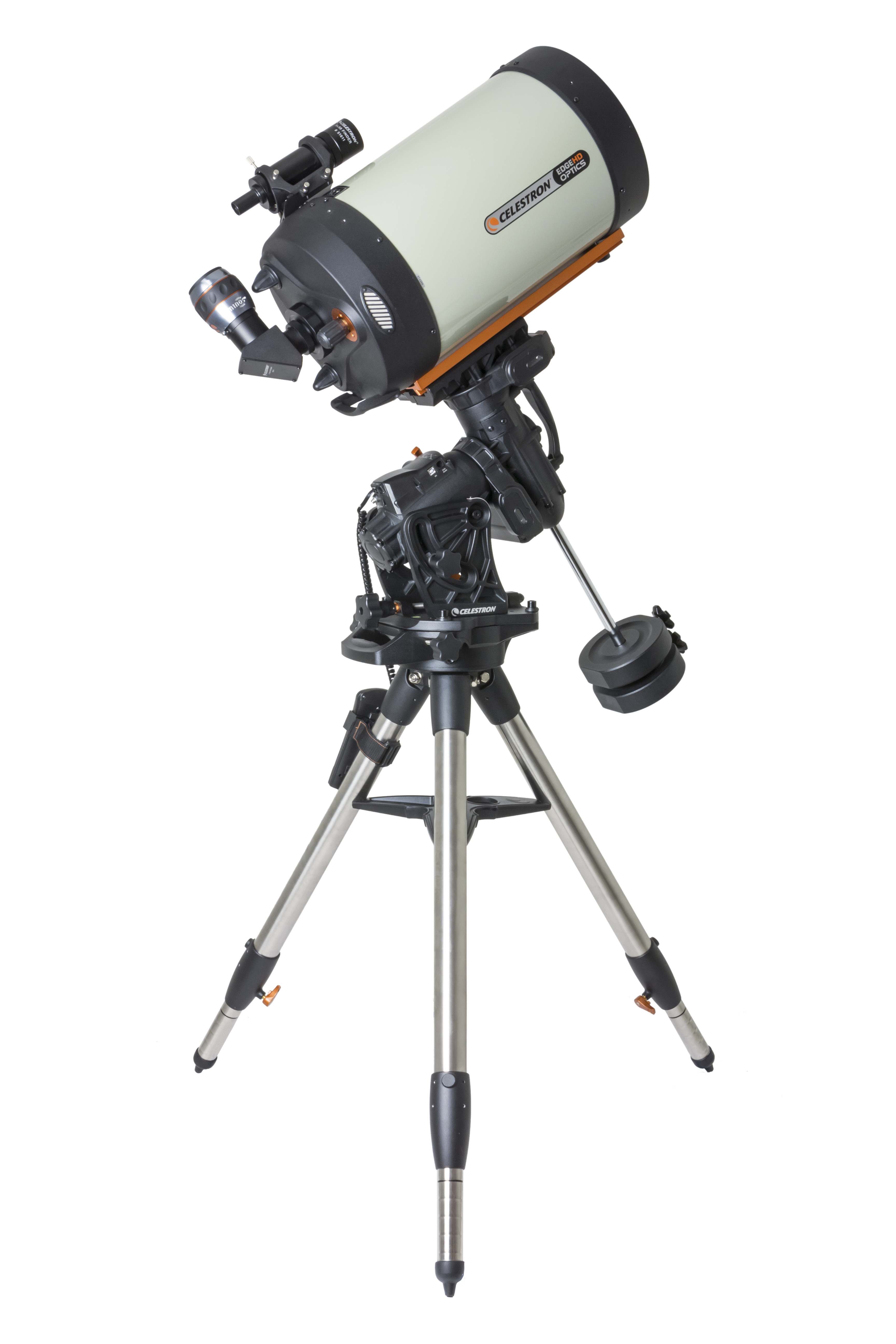

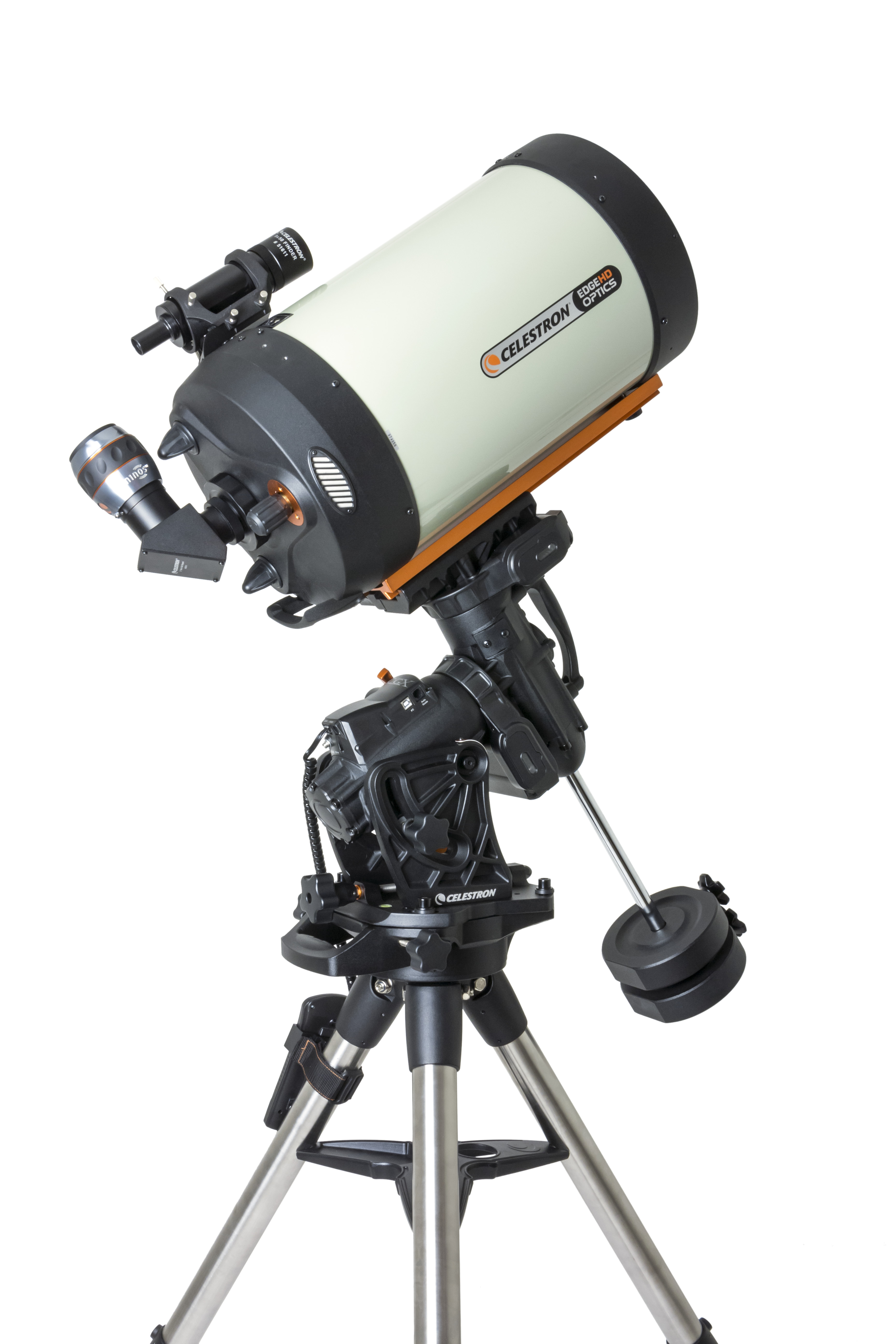

The CGX 1100 HD combines Celestron's all-new state of the art CGX computerised equatorial mount with its acclaimed EdgeHD optical system.
With an optical tube assembly weighing only 12.7 Kg (28 lbs) this telescope is still portable enough to be taken to dark skies, and it’s 11” aperture delivers 89% more light gathering power than an 8" telescope and 40% more than the 9.25".
EdgeHD is an aplanatic, flat field Schmidt-Cassegrain telescope that produces aberration-free images across a wide visual and photographic field of view. The optical system was designed to reduce more than just off-axis star coma; it also provides an astrograph-quality flat focal plane all the way to the edge of the field of view.
For eight years, Celestron’s workhorse CGEM mount lineup has been the German Equatorial backbone for telescopes ranging from 6 to 11 inches of aperture. Since that time, many more astro-imagers and planetarium controlled setups have emerged as backyard telescope technology has evolved. Celestron’s engineering team applied their years of experience designing German Equatorial mounts to the all-new CGX EQ, a culmination of all the advancements made to Celestron’s technologies, value, and ease-of-use.
The new CGX was designed to support your telescope for both visual and astro-imaging pursuits. Key design goals included a lower profile EQ head for a more compact and therefore more stable setup; a better drive system; remote operation-friendly with home and limit optical sensors; easier polar alignment adjustments and better cable management. In addition, there are several mechanical and ergonomic improvements to make the mount sturdier, easier to use and transport.
CGX Intro Video
GENERAL FEATURES
- 11" HD Optical Tube Assembly
- CGX EQ Mount and Tripod
- Celestron’s premium StarBright XLT coatings provide maximum light transmission
- A 9x50 finderscope, 2” mirror diagonal for more comfortable viewing, and wide-angle 23 mm Luminos 2" eyepiece are all included
- Celestron’s premium StarBright XLT coatings provide maximum light transmission
- Experience our best optical performance with EdgeHD’s flat-field and coma-free optics for pinpoint stars all the way to the edge of today’s largest imaging sensors and widest eyepieces
- Aluminum optical tube with tube vents featuring an integrated 95-micron mesh filter allows hot air to be released from behind the primary mirror. Mirror support knobs hold the mirror in place and reduce image shift during imaging
- Versatile design accommodates 2 focal ratios: native f/10 or ultra-fast f/2 imaging with a removable secondary mirror and third-party accessories
CGX MOUNT FEATURES
- All-new design. Sturdier and more rigid with quicker dampening time
- Increased load capacity to 55 lbs.
- Improved motors provide more torque, better slewing and tracking under heavy loads
- Heavy Duty belt-drive system minimises backlash while providing smooth motor operation under heavy loads
- Spring-loaded brass worm wheel and stainless steel worm gear reduce friction and provide optimum gear mesh
- Internal cabling for worry-free remote operation. Power input and accessory ports remain stationary while the mount slews to avoid snags
- Internal hard stops for both axes prevents cable tension and tripod strike
- Internal optical sensors on both axes for simple and safe remote operation
- Home sensors allow the mount to always start in the index position regardless of orientation before a power reset
- Limit sensors automatically shut off slewing or tracking before reaching the hard stop fail safe
- Brand new control software developed in conjunction with PlaneWave Instruments for professional level control operation and imaging
- Software includes multi-point mount modeling for extremely precise pointing accuracy and many more additional features for remote astroimaging
- Wider tripod stance for improved stability
- Adjustable EQ head position to optimize center of gravity over the tripod and fully utilize the increased 3º-65º latitude range
- Dual-fit CG-5/Vixen and CGE/Losmandy dovetail saddle
IMPROVED TRIPOD FEATURES
- 2" steel legs with height index marks for quick leveling
- "Jack of all trays" can hold three 1.25" eyepieces, two 2" eyepieces, your smartphone, or other accessories
- +20º of additional tracking past the meridian on either side
- Tripod legs can be collapsed with accessory tray installed for faster setup and transport
CGX MOUNT ERGONOMICS
- All-new ergonomically designed dovetail clamping knobs
- Innovative and improved polar alignment adjustment system
- All-new ergonomic latitude adjuster for smooth and easy adjustment under full loads
- Optional add-on polar axis finderscope - coming soon
CGX MOUNT ELECTRONICS
- All-new NexStar+ hand control with USB port
- Two AUX accessory ports to support wireless/WiFi alignment and operation with StarSense AutoAlign and SkyPortal WiFi Module accessories (sold separately)
- USB 2.0 port, used to connect directly to PC with included software
- Autoguider port
- PPEC ready
- Threaded 12VDC power input barrel connector
- Internal Real Time Clock (keeps time and site information saved)
What's in the box
- Telescope OTA
- 9x50 Finderscope
- 2" Star Diagonal
- 23mm Luminos 2" Eyepiece
- CGX Equatorial Head
- CGX Tripod
- Accessory Tray
- 3x 5kg / 11lbs Counterweight
- NexStar+ Hand Control
- DC Power Cable (Cigar Plug)
Specifications
| Dovetail Compatibility | CGE Mount |
| Optical Design | EdgeHD |
| Aperture (mm) | 279.4 mm (11 in) |
| Focal Length | 2800 mm (110 in) |
| Focal Ratio | 10 |
| Focal Length of Eyepiece 1 (mm) | 23 mm (0.91 in) |
| Magnification of Eyepiece 1 | 122x |
| Finderscope | 9x50 |
| Star Diagonal | 2" w/ 1.25" adapter |
| Optical Tube | Aluminum |
| Highest Useful Magnification | 660x |
| Lowest Useful Magnification | 40x |
| Limiting Stellar Magnitude | 14.7 |
| Resolution (Rayleigh) | 0.5 arc seconds |
| Resolution (Dawes) | 0.42 arc seconds |
| Light Gathering Power (Compared to human eye) | 1593x |
| Secondary Mirror Obstruction | 3.75 in (95 mm) |
| Secondary Mirror Obstruction by Diameter | 34% |
| Secondary Mirror Obstruction by Diameter | 12% |
| Optical Coatings | StarBright XLT |
| Optical Tube Length | 24 in (610 mm) |
| Optical Tube Weight | 28 lbs (13 kg) |
| Mount | German Equatorial |
| Instrument load capacity | 55lbs |
| Tripod height adjustment range | 47.25” to 77.5” including EQ head |
| Tripod leg diameter | 2" |
| Latitude adjustment range | 3º-65º |
| Tripod Weight | 19.2 lbs |
| EQ Head Weight | 44 lbs |
| Max Slew Speed | 5º/second (4º/second is default) |
| Tracking Rates | Sidereal, Solar and Lunar |
| Number of Auxiliary ports (for hand control and accessories) | 2 |
| Autoguide port | Yes |
| USB Port | Yes |
| Software | New telescope control PC software |
