About this product

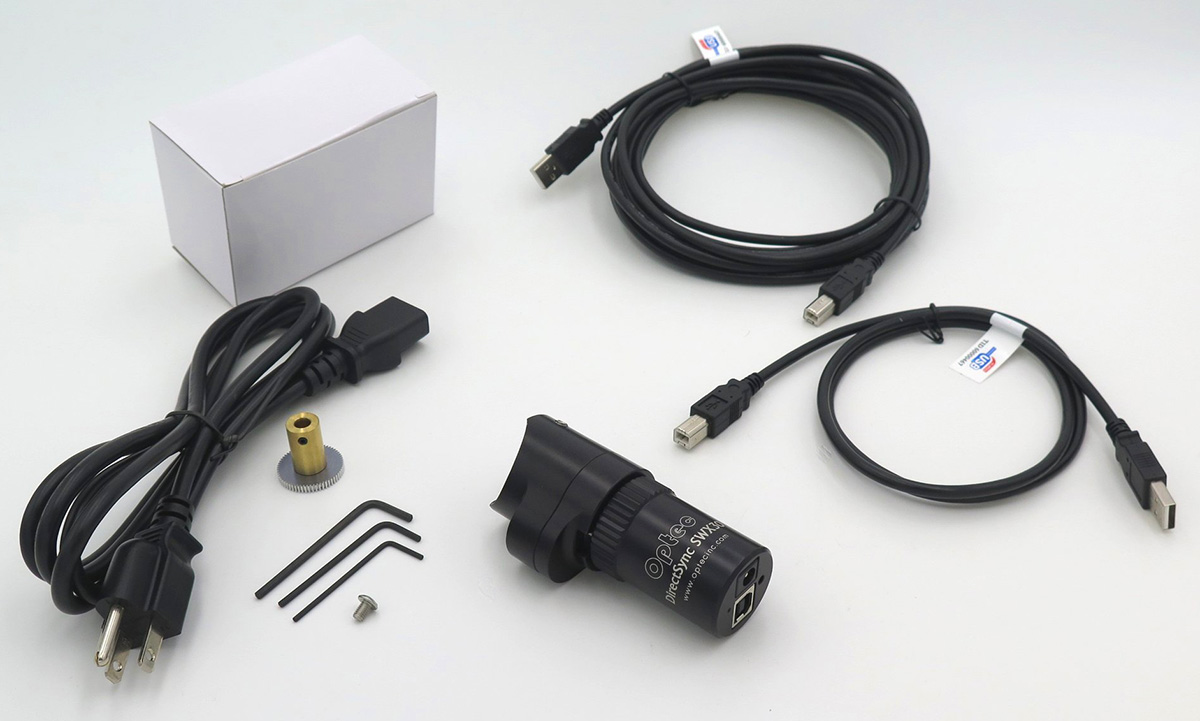

Optec ThirdLynx DirectSync SWX30 Focus Motor for SkyWatcher 3-inch focusers (Esprit 100, 120 &150).

Similar to the original DirectSync SW30 motors with the same Best-in-Class clutch mechanism, the new DirectSync SWX30 includes an all-new integrated control circuit built into the focus motor end cap.

No external controller is required.

USB connectivity and fully compatible with all existing FocusLynx software.

Specifications

• Motor Housing Width: 1.9" (48mm)
• Overall Length: 3.55" (90mm)
• Weight: 6.0 oz (165 g)
• Step Resolution: 1.1 micron per step
• Stepper Motor: Bi-polar NPM 15-ohm with 1:25 gearhead
• Controller:  Integrated ThirdLynx
• Connectivity:  USB 2.0 A-B cable (included)
• Temperature Sensor: Analog Devices ADT7302 embedded
• Input Power: 12-volts DC, 2.5 x 5.5mm plug
• Current Draw: Maximum draw approx. 350mA
