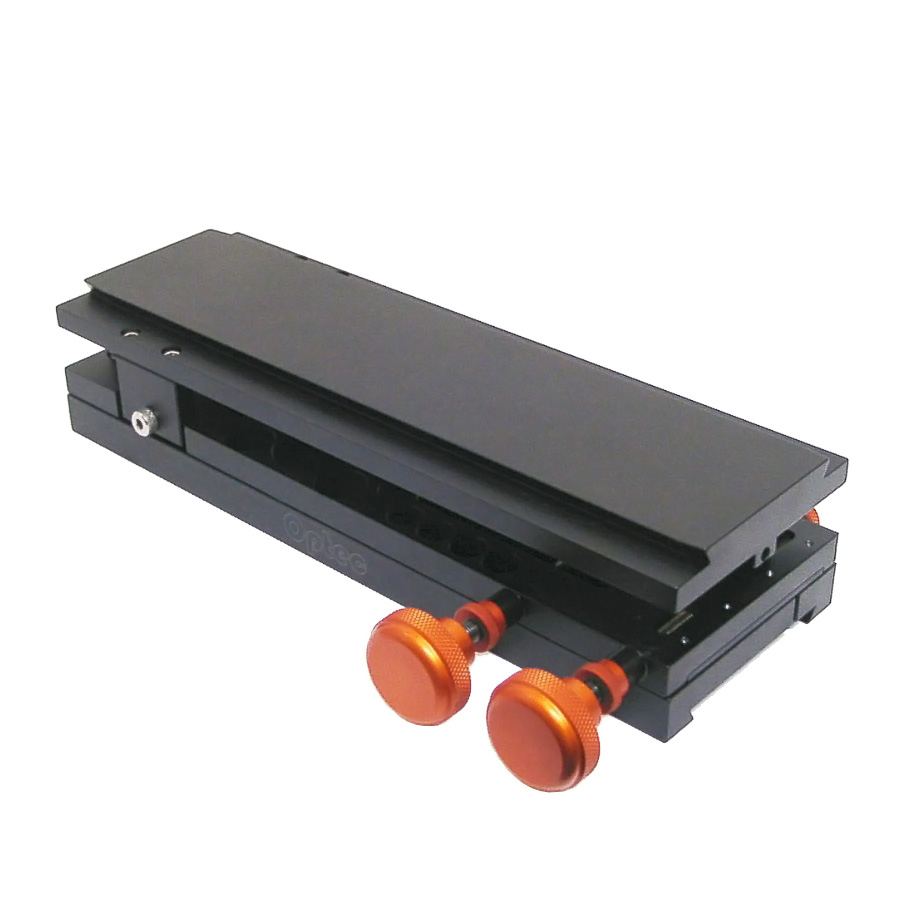

Optec Libra Alt-Az Adjustable Mount

Aligning two co-axial telescopes has always been a challenge. Scope rings require adjusting up to six individual screws to provide alignment. Then the slightest bump can knock the telescopes out of alignment.

The Libra Alt-Az mount was designed to make this alignment task simple and painless. Using a pair of clamps on one side to attach the female dovetail receiver to an existing male D-plate, the #19230 will fit directly onto any "D" style dovetail bar.

A second pair of larger knobs on the opposite side provides altitude and azimuth adjustments. A locking thumb nut secures the fine thread adjustment shaft for easy "no tools" installation and configuration.

Specifications

D-plate Width: 4.00"

Overall Width with knobs: 5" to 8"

Overall Height (level): 2.65" (2.3" to 3.0")

Overall Length: 12.25"

Clamp Width: 2.5"

Altitude Adjustment: 4 degrees

Azimuth Adjustment: 9 degrees

Clamp Fasteners: 3/4" knurled aluminium

Alt-Az Knobs: 1-1/2" knurled aluminium

Knob Color Options: Natural, Orange, Blue

Weight: 5 lb. 15 oz (2.7 kg)

Payload Capacity: 25 lbs.

Safety: Two 1/4"-20 knobs on male dovetail (NEW!)

Compatible With

• Optec Libra "D" series dovetail systems,
• Losmandy D series dovetail systems,
• Celestron dovetail bar,
• Farpoint D series dovetails systems,
• ADM "D" Series dovetail systems,
• Robin Casady's dovetail systems.
