StellaLyra 2'' 4-element Photo-Visual Coma Corrector for Newtonian Telescopes
  Zoom
StellaLyra 2'' 4-element Photo-Visual Coma Corrector for Newtonian TelescopesStellaLyra 2'' 4-element Photo-Visual Coma Corrector for Newtonian TelescopesStellaLyra 2'' 4-element Photo-Visual Coma Corrector for Newtonian Telescopes

StellaLyra 2" 4-element Photo-Visual Coma Corrector for Newtonian Telescopes

£99.00
  (3 Reviews)
✓ 2 year warranty

:

13x in stock shipped 1-2 working days

About this product

Model:  stellalyra_f4_cc

High-quality 2" 4-element Photo-Visual Coma Corrector

Designed and manufactured by Guan Sheng Optical (GSO) in Taiwan.

Reduces coma and field curvature.

Designed for fast Newtonian telescopes with focal ratios f/3-f/6 but optimised for around f/4.

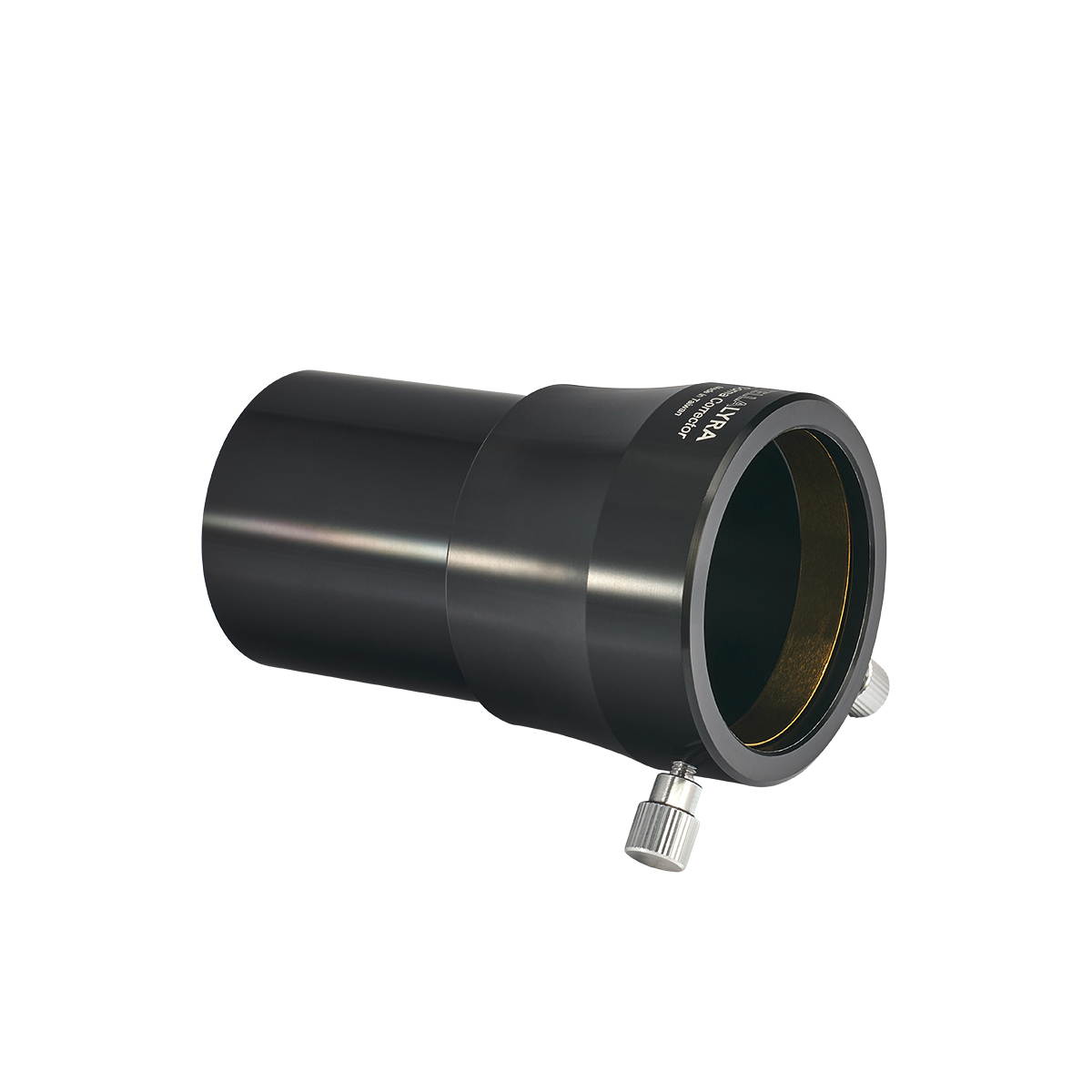

This modular design includes a 2" eyepiece holder with two large thumbscrews and a non-marring brass compression ring (won't mark your eyepiece barrels).

For astrophotography, the eyepiece holder can be removed to reveal an M48 thread for connecting a camera and includes an M48-M42/T2 adapter.

Increases magnification slightly (approximately 1.1x) and has a back focus requirement of approx 75mm.  So, for example, when using a Canon/Nikon DSLR camera with 55mm back focus (including a standard thickness M48 ring to fit the camera), you will need an approx 20mm long spacer between the corrector and M48 ring.

FEATURES

  • Smooth 2" nosepiece with M48x0.75 / 2" filter thread
  • Designed for f/4 Newtonian Telescopes but works well around f/3-f/6
  • Fully multi-coated 4-element, 2-group optics
  • Reduced coma and field curvature
  • 1.1x Magnification
  • 75mm ± 5mm back focus
  • 44mm clear aperture
  • Includes an M48 to M42/T2 Adapter

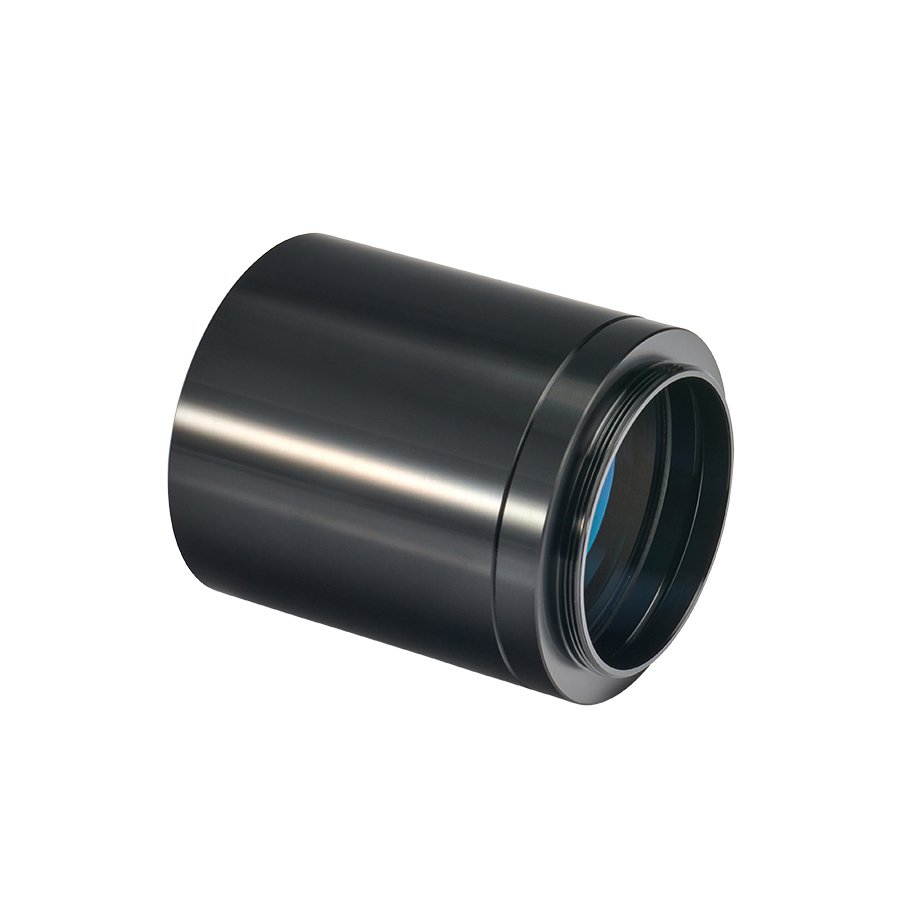

  • Undo the 2" eyepiece holder to reveal an M48 thread

What's in the box

  • 2" Coma Corrector
  • M48 to M42/T2 Adapter
  • Lens Caps

Specifications

Barrel Size 2" / 50.8mm
Magnification 1.1x
Focal Ratio f/3-f/6
Optics Fully multicoated. 4-elements, 2-groups
Weight 335g complete
220g without 2" eyepiece holder
Clear Aperture 44mm
Back Focus 75mm ± 5mm
Filter Thread M48 x 0.75 / 2" filter thread
Camera Thread

M48 x 0.75 with 2" eyepiece holder removed

M42/T2 with included M48-M42 adapter

Country of Manufacture Taiwan

Customer reviews

Average Rating (3 Reviews):
Write a Review and share your opinions!

Rating (max 5):
Excellent Coma Corrector
03 February 2025  |

I am very pleased with the cheaper GSO coma corrector and how easy it was to find the correct back focus with both my astrophotography cameras. I have noticed with large chip cameras like the IMX571 I still have coma in the outer edges of the image while this does not happen with smaller chips like the IMX585, indicating that collimation is reasonably good and the coma corrector is doing a excellent job. Maybe I need to purchase a field flattener next to correct the issue or just get better at collimating my GSO 6" F5 reflector telescope.


Rating (max 5):
Works well
07 March 2024  |

I have several scopes, flatteners and reducers from this brand and the quality has all ways been high so seemed like a no brainer to try their coma corrector.


Rating (max 5):
StellaLyra 2" 4-element Photo-Visual Coma Corrector
03 April 2023  |

Blown away with the effect this coma corrector has on my favourite Maxvision 24mm 82degree eyepiece through my 12” f/4.9 dob; it simply cleans up the coma and tightens up the stars perfectly; I used 1 x 12mm & 1 x 7mm extension ring making 19 total, I can't see myself using the Morpheus 17.5 without it, as switched from the 24mm Maxvision back to the Morpheus 17.5 and found it to need that last 5% improved. After my focuser upgrade, this is the best addition to my Dobsonian; very impressed.
