Astronomik CLS CCD Filter

• Product description
• FAQ

:	2x in stock shipped 1-2 working days

Add to Basket

Notify me when back in stock

Ask a Question Add To Wishlist Send To Friend

About this product

The Astronomik CLS CCD is suitable under light-polluted skies for DSLR Cameras, which have been modded for astronomical use. The filter enhances the contrast between all deep-sky objects and the background.

The CLS-CCD Filter enhances the contrast between astronomical objects and the background. Due to the wider transmission curve compared to UHC filters, a greater amount of light will pass the filter. Stars will be less dimmed. This filter has been optimised to block as much spurious light as possible and simultaneously provide the best performance for 'useful' light. A good filter for DSLR-, CCD- and film b/w-photography as well as observation of deep-sky-objects with telescopes or photo lenses of all aperture f/3 and above.

Main use

The filter blocks completely emission lines of artificial light sources like streetlights (e.g. sodium- and mercury-vapor) as well as the airglow. All 'important' emission lines as well as the spectral range of the night-adapted eye are passed.

The supplementary IR-blocking layer allows the use for DSLR- and Webcams without an integrated IR-block filter.

Other uses

• Easier resolution of Double Stars.
• With the EOS-Clip model, photography with DSLR cameras is feasible even unter extreme light-polluting conditions without shifting the white balance.
• The 1.25" and 2" socket models can be used for observations from light-polluted areas.
• If you plan to create colour images from emission line data, our CLS-CCD filter is a great choice for the Luminance channel

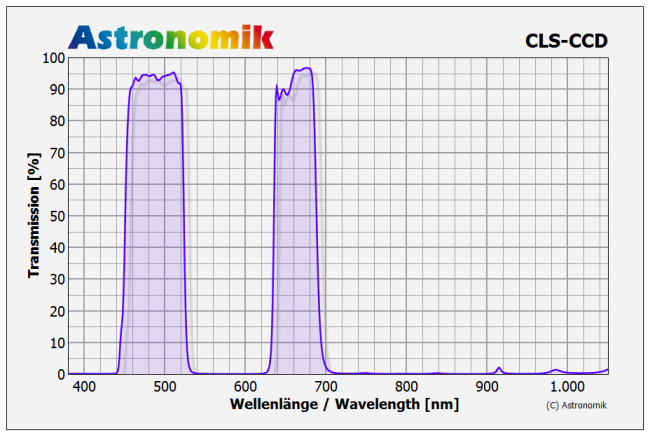

Transmission Chart

• The horizontal axis is the Wavelength in Nanometers (nm). 400nm is deep blue, at 520nm the human eye senses green and at 600nm red. At 656nm is the famous "H-Alpha" emission line of hydrogen.
• The transmission in % is plotted on the vertical axis.
• The blue line shows the transmission of the filter.
• The most important emission lines from nebulas are shown in orange. The most important lines are from ionised Hydrogen (H-alpha and H-beta) and double ionised oxygen (OIII).

The major emission lines of artificial light pollution:
| Hg 435,8nm | Hg 546,1nm | Hg 577,0nm | Hg 578,1nm |
| Na 589,0nm | Na 589,6nm | Na 615,4nm | Na 616,1nm |

The major emission lines of nebulas:
H-β 486,1nm | OIII 495,9nm | OIII 500,7nm | H-α 656,3nm

Suitability

• Visual observation (dark skies): Good, to reduce light pollution by mercury-vapour lamps (streetlight)
• Visual observation (urban skies): Reasonable, an UHC-E or UHC filter is more suitable
• Film photography: Very good, colour balance is near perfect
• CCD photography: Very good, optimised rejection of light pollution
• DSLR photography (original): Good, colour balance shifted but contrast enhanced
• DSLR photography (astro modified): Very good, colour balance is near perfect
• DSLR photography (MC modified): Very good, colour balance is near perfect
• Webcam / Video (Planets): Unsuitable
• Webcam / Video (Deep Sky): Very good, if light pollution is a big problem

Technical Data

• 95% transmission at 486nm (H-beta)
• 95% transmission at 496nm (OIII)
• 95% transmission at 501nm (OIII)
• 97% transmission at 656nm (H-alpha)
• Pass from 450 to 520nm and from 640 to 690nm
• Scratch-resistant!
• Excellent carrier material. The optical performance of your telescope is not reduced by the filter in any way.
• Parfocal with other Astronomik filters
• Glass thickness: 1mm
• Completely resistant against high humidity, scratches and ageing effects
• Diffraction limited, the filter will not reduce the optical performance of your telescope!
• Astronomik filters are delivered in a high-quality, long lasting, filter box
