Daystar Flat Cap Imaging Diffuser

£81.00

(1 Review)

✓ 2 year warranty

Product description
FAQ

:	1x in stock shipped 1-2 working days

Ask a Question Ask a Wishlist

Add To Wishlist

Send To Friend

About this product

Model: daystar_fc120
Part Number: FC120

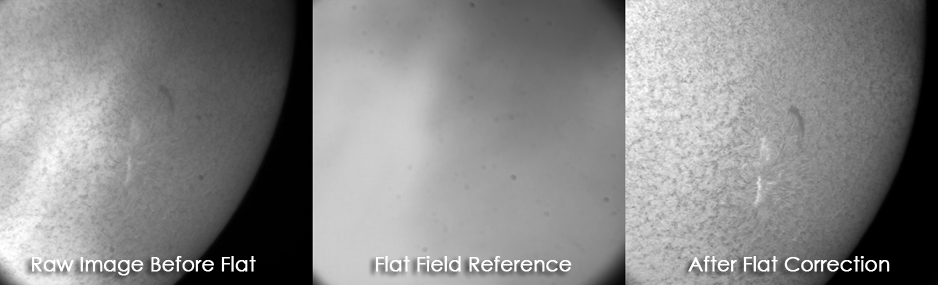

Taking a Flat field reference image removes the effects of dust spots, vignetting, and filter uniformity.

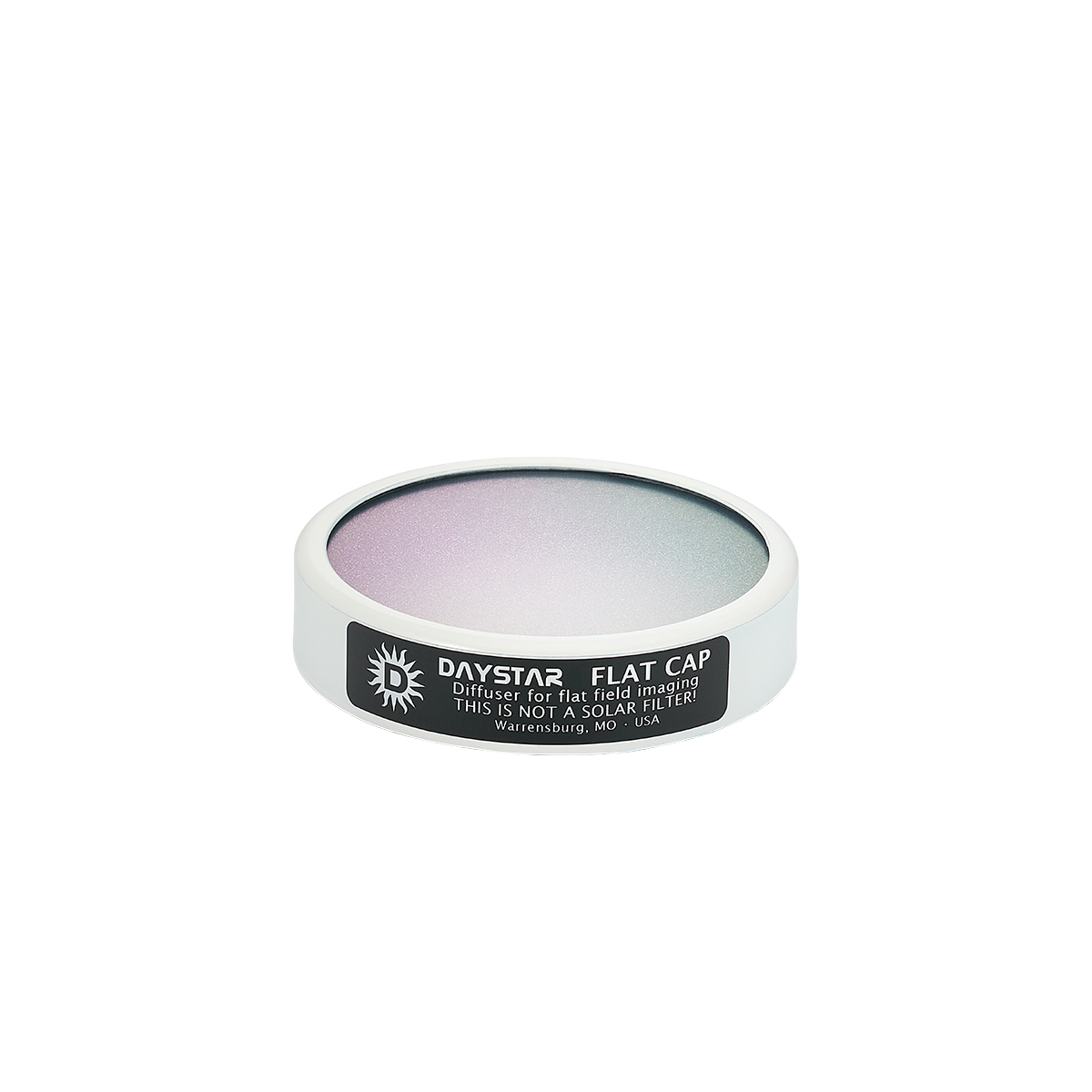

The DayStar FlatCap is a Gaussian diffuser that is temporarily installed over the front of your telescope when taking flat field reference images.

By strongly blurring the Sun, the only details you will see in the reference image are from defects in your imaging train that can be removed in software.

Specifications

Construction: Spun Aluminium mounting ring with polymer diffuser
Intensity distribution: Gaussian
Divergence angle: 4 degrees FWHM
Exposure time adjustment factor: 100x longer
Maximum field of view: 1 degree with Sun backlight
Wavelength transmission range: 350-800nm
Operating temperature: -10 to 100°C (14-212°F)

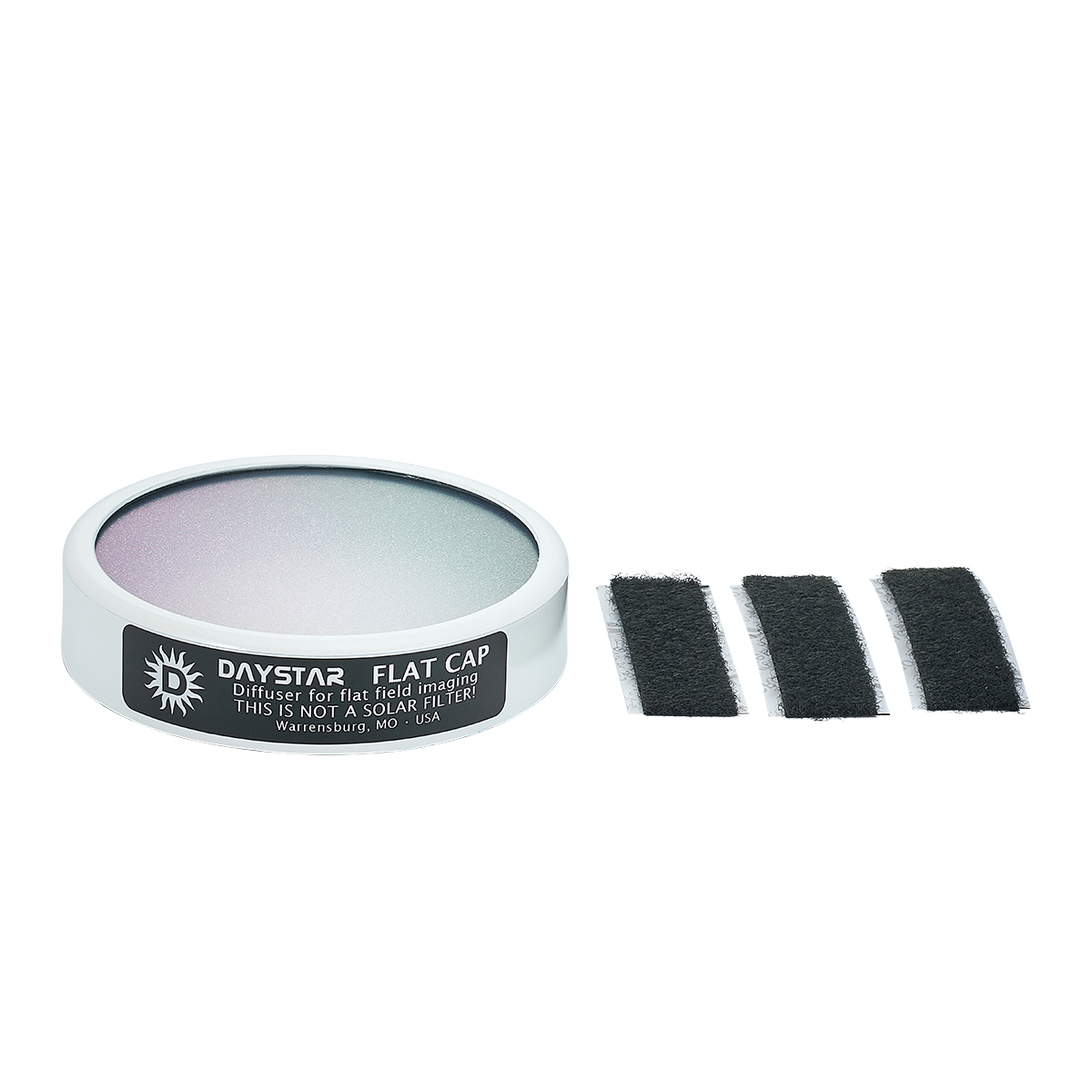

FlatCap is sold by inside diameter of the mounting cap. Measure the outside diameter of the frontmost component of your telescope or ERF, and then round up to the next larger size. For example, a telescope with a 160mm front should use model FC170, and then optionally install the included felt pads for a secure fit.

IMPORTANT: This DayStar FlatCap Gaussian diffuse filter must be used together with a suitable purpose-made solar filter.

FC90 Flatcap - Fits 80-89mm Tube OD or 63mm ERF
FC100 Flatcap - Fits 90-99mm Tube OD
FC110 Flatcap - Fits 100-109mm Tube OD or 80mm ERF
FC120 Flatcap - Fits 110-119mm Tube OD
FC130 Flatcap - Fits 120-129mm Tube OD
FC140 Flatcap - Fits 130-139mm Tube OD
FC150 Flatcap - Fits 140-149mm Tube OD
FC154 Flatcap - Fits 145-154mm Tube OD
FC160 Flatcap - Fits 150-159mm Tube OD
FC170 Flatcap - Fits 160-169mm Tube OD
FC180 Flatcap - Fits 170-179mm Tube OD
FC190 Flatcap - Fits 180-189mm Tube OD
FC210 Flatcap - Fits 190-209mm Tube OD

Customer reviews

Average Rating (1 Review):

Write a Review and share your opinions!

Rating (max 5):

Convenient and effective at killing sensor pattern noise

06 July 2023 | William

Solar flats can be taken pretty effectively using methods such as defocusing, or maintaining focus and using cling film or cereal packets. That will usually get rid of dust bunnies. But having tried taking flats using Sharpcap’s flats tool without and with the Flat Cap I’m very happy I got the cap. I’ve been using a camera with an IMX178 chip and had been unlucky to have the sensor pattern noise, with intermittent success killing it with flats taken by cruder methods. The cap just killed it very effectively. Maybe it’s the clear exposure guidance provided. In any case the pattern noise shows clearly on the flats and cancels it in the image. It is also very convenient to just pop this on the scope. I’ve given it 4/5 as if your dew shield diameter is towards the lower end of the range for any given size the cap remains very loose even after attaching the supplied spacer foam, and it is a bit pricey.
